qx::dao::detail::IxSqlElement Class Reference

qx::dao::detail::IxSqlElement : common interface for all SQL elements to build SQL query More...

#include <IxSqlElement.h>

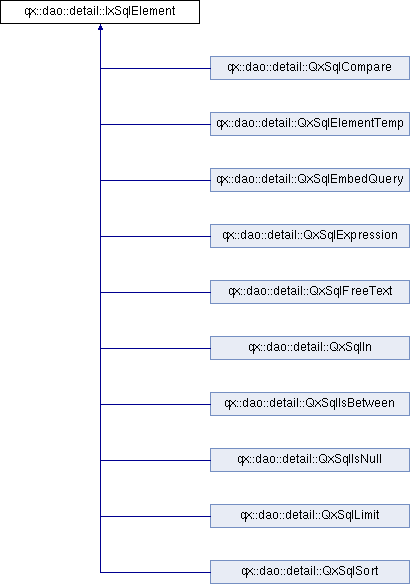

Inheritance diagram for qx::dao::detail::IxSqlElement:

List of all members.

Public Types
enum	type_class {   _no_type, _sql_compare, _sql_element_temp, _sql_expression,   _sql_free_text, _sql_in, _sql_is_between, _sql_is_null,   _sql_limit, _sql_sort, _sql_embed_query }
Public Member Functions
	IxSqlElement (int index)
virtual	~IxSqlElement ()
void	setColumn (const QString &column)
void	setColumns (const QStringList &columns)
void	setValue (const QVariant &val)
void	setValues (const QVariantList &values)
virtual IxSqlElement::type_class	getTypeClass () const =0
virtual QString	toString () const =0
virtual void	resolve (QSqlQuery &query, qx::QxCollection< QString, QVariantList > *pLstExecBatch=NULL) const =0
virtual void	postProcess (QString &sql) const =0
virtual void	clone (IxSqlElement *other)
template<class Archive >
void	qxSave (Archive &ar) const
template<class Archive >
void	qxLoad (Archive &ar)
Protected Member Functions
void	updateKeys ()
virtual QString	getExtraSettings () const =0
virtual void	setExtraSettings (const QString &s)=0
Protected Attributes
int	m_iIndex
	Index of SQL element to build unique string.
QStringList	m_lstColumns
	List of columns associated to SQL element.
QStringList	m_lstKeys
	List of keys associated to SQL element.
QList< QVariant >	m_lstValues
	List of values associated to SQL element.
IxSqlGenerator *	m_pSqlGenerator
	SQL generator to build SQL query specific for each database.
Friends
struct	qx::cvt::detail::QxConvert_ToJson< qx::dao::detail::IxSqlElement >
struct	qx::cvt::detail::QxConvert_FromJson< qx::dao::detail::IxSqlElement >
QX_DLL_EXPORT QDataStream &	operator<< (QDataStream &stream, const qx::dao::detail::IxSqlElement &t)
QX_DLL_EXPORT QDataStream &	operator>> (QDataStream &stream, qx::dao::detail::IxSqlElement &t)
QX_DLL_EXPORT QJsonValue	qx::cvt::detail::QxConvert_ToJson_Helper (const qx::dao::detail::IxSqlElement &t, const QString &format)
QX_DLL_EXPORT qx_bool	qx::cvt::detail::QxConvert_FromJson_Helper (const QJsonValue &j, qx::dao::detail::IxSqlElement &t, const QString &format)

---

Detailed Description

qx::dao::detail::IxSqlElement : common interface for all SQL elements to build SQL query

Definition at line 102 of file IxSqlElement.h.

---

Member Enumeration Documentation

enum qx::dao::detail::IxSqlElement::type_class

Enumerator:

_no_type
_sql_compare
_sql_element_temp
_sql_expression
_sql_free_text
_sql_in
_sql_is_between
_sql_is_null
_sql_limit
_sql_sort
_sql_embed_query

Definition at line 117 of file IxSqlElement.h.

---

Constructor & Destructor Documentation

qx::dao::detail::IxSqlElement::IxSqlElement

(

int

index

)

virtual qx::dao::detail::IxSqlElement::~IxSqlElement

(

)

[virtual]

---

Member Function Documentation

virtual void qx::dao::detail::IxSqlElement::clone

(

IxSqlElement *

other

)

[virtual]

virtual QString qx::dao::detail::IxSqlElement::getExtraSettings

(

)

const [protected, pure virtual]

Implemented in qx::dao::detail::QxSqlEmbedQuery, qx::dao::detail::QxSqlCompare, qx::dao::detail::QxSqlExpression, qx::dao::detail::QxSqlIn, qx::dao::detail::QxSqlLimit, qx::dao::detail::QxSqlIsBetween, qx::dao::detail::QxSqlIsNull, qx::dao::detail::QxSqlSort, qx::dao::detail::QxSqlFreeText, and qx::dao::detail::QxSqlElementTemp.

virtual IxSqlElement::type_class qx::dao::detail::IxSqlElement::getTypeClass

(

)

const [pure virtual]

Implemented in qx::dao::detail::QxSqlEmbedQuery, qx::dao::detail::QxSqlCompare, qx::dao::detail::QxSqlExpression, qx::dao::detail::QxSqlIn, qx::dao::detail::QxSqlLimit, qx::dao::detail::QxSqlIsBetween, qx::dao::detail::QxSqlIsNull, qx::dao::detail::QxSqlSort, qx::dao::detail::QxSqlFreeText, and qx::dao::detail::QxSqlElementTemp.

virtual void qx::dao::detail::IxSqlElement::postProcess

(

QString &

sql

)

const [pure virtual]

Implemented in qx::dao::detail::QxSqlEmbedQuery, qx::dao::detail::QxSqlCompare, qx::dao::detail::QxSqlExpression, qx::dao::detail::QxSqlIn, qx::dao::detail::QxSqlIsBetween, qx::dao::detail::QxSqlIsNull, qx::dao::detail::QxSqlSort, qx::dao::detail::QxSqlFreeText, qx::dao::detail::QxSqlLimit, and qx::dao::detail::QxSqlElementTemp.

template<class Archive >

void qx::dao::detail::IxSqlElement::qxLoad

(

Archive &

ar

)

[inline]

Definition at line 161 of file IxSqlElement.h.

template<class Archive >

void qx::dao::detail::IxSqlElement::qxSave

(

Archive &

ar

)

const [inline]

Definition at line 148 of file IxSqlElement.h.

virtual void qx::dao::detail::IxSqlElement::resolve	(	QSqlQuery &	query,
		qx::QxCollection< QString, QVariantList > *	pLstExecBatch = NULL
	)		const [pure virtual]

Implemented in qx::dao::detail::QxSqlEmbedQuery, qx::dao::detail::QxSqlCompare, qx::dao::detail::QxSqlExpression, qx::dao::detail::QxSqlIn, qx::dao::detail::QxSqlIsBetween, qx::dao::detail::QxSqlIsNull, qx::dao::detail::QxSqlSort, qx::dao::detail::QxSqlFreeText, qx::dao::detail::QxSqlLimit, and qx::dao::detail::QxSqlElementTemp.

void qx::dao::detail::IxSqlElement::setColumn

(

const QString &

column

)

void qx::dao::detail::IxSqlElement::setColumns

(

const QStringList &

columns

)

virtual void qx::dao::detail::IxSqlElement::setExtraSettings

(

const QString &

s

)

[protected, pure virtual]

Implemented in qx::dao::detail::QxSqlEmbedQuery, qx::dao::detail::QxSqlCompare, qx::dao::detail::QxSqlExpression, qx::dao::detail::QxSqlIn, qx::dao::detail::QxSqlLimit, qx::dao::detail::QxSqlIsBetween, qx::dao::detail::QxSqlIsNull, qx::dao::detail::QxSqlSort, qx::dao::detail::QxSqlFreeText, and qx::dao::detail::QxSqlElementTemp.

void qx::dao::detail::IxSqlElement::setValue

(

const QVariant &

val

)

void qx::dao::detail::IxSqlElement::setValues

(

const QVariantList &

values

)

virtual QString qx::dao::detail::IxSqlElement::toString

(

)

const [pure virtual]

Implemented in qx::dao::detail::QxSqlEmbedQuery, qx::dao::detail::QxSqlCompare, qx::dao::detail::QxSqlExpression, qx::dao::detail::QxSqlIn, qx::dao::detail::QxSqlIsBetween, qx::dao::detail::QxSqlIsNull, qx::dao::detail::QxSqlSort, qx::dao::detail::QxSqlFreeText, qx::dao::detail::QxSqlLimit, and qx::dao::detail::QxSqlElementTemp.

void qx::dao::detail::IxSqlElement::updateKeys

(

)

[protected]

---

Friends And Related Function Documentation

QX_DLL_EXPORT QDataStream& operator<<	(	QDataStream &	stream,
		const qx::dao::detail::IxSqlElement &	t
	)		[friend]

QX_DLL_EXPORT QDataStream& operator>>	(	QDataStream &	stream,
		qx::dao::detail::IxSqlElement &	t
	)		[friend]

friend struct qx::cvt::detail::QxConvert_FromJson< qx::dao::detail::IxSqlElement > [friend]

Definition at line 110 of file IxSqlElement.h.

QX_DLL_EXPORT qx_bool qx::cvt::detail::QxConvert_FromJson_Helper	(	const QJsonValue &	j,
		qx::dao::detail::IxSqlElement &	t,
		const QString &	format
	)		[friend]

friend struct qx::cvt::detail::QxConvert_ToJson< qx::dao::detail::IxSqlElement > [friend]

Definition at line 109 of file IxSqlElement.h.

QX_DLL_EXPORT QJsonValue qx::cvt::detail::QxConvert_ToJson_Helper	(	const qx::dao::detail::IxSqlElement &	t,
		const QString &	format
	)		[friend]

---

Member Data Documentation

int qx::dao::detail::IxSqlElement::m_iIndex [protected]

Index of SQL element to build unique string.

Definition at line 122 of file IxSqlElement.h.

QStringList qx::dao::detail::IxSqlElement::m_lstColumns [protected]

List of columns associated to SQL element.

Definition at line 123 of file IxSqlElement.h.

QStringList qx::dao::detail::IxSqlElement::m_lstKeys [protected]

List of keys associated to SQL element.

Definition at line 124 of file IxSqlElement.h.

QList<QVariant> qx::dao::detail::IxSqlElement::m_lstValues [protected]

List of values associated to SQL element.

Definition at line 125 of file IxSqlElement.h.

IxSqlGenerator* qx::dao::detail::IxSqlElement::m_pSqlGenerator [protected]

SQL generator to build SQL query specific for each database.

Definition at line 126 of file IxSqlElement.h.

---

The documentation for this class was generated from the following file:

• C:/Dev/_Perso/QxOrm/include/QxDao/QxSqlElement/IxSqlElement.h
